SP-13009SM Operation Video

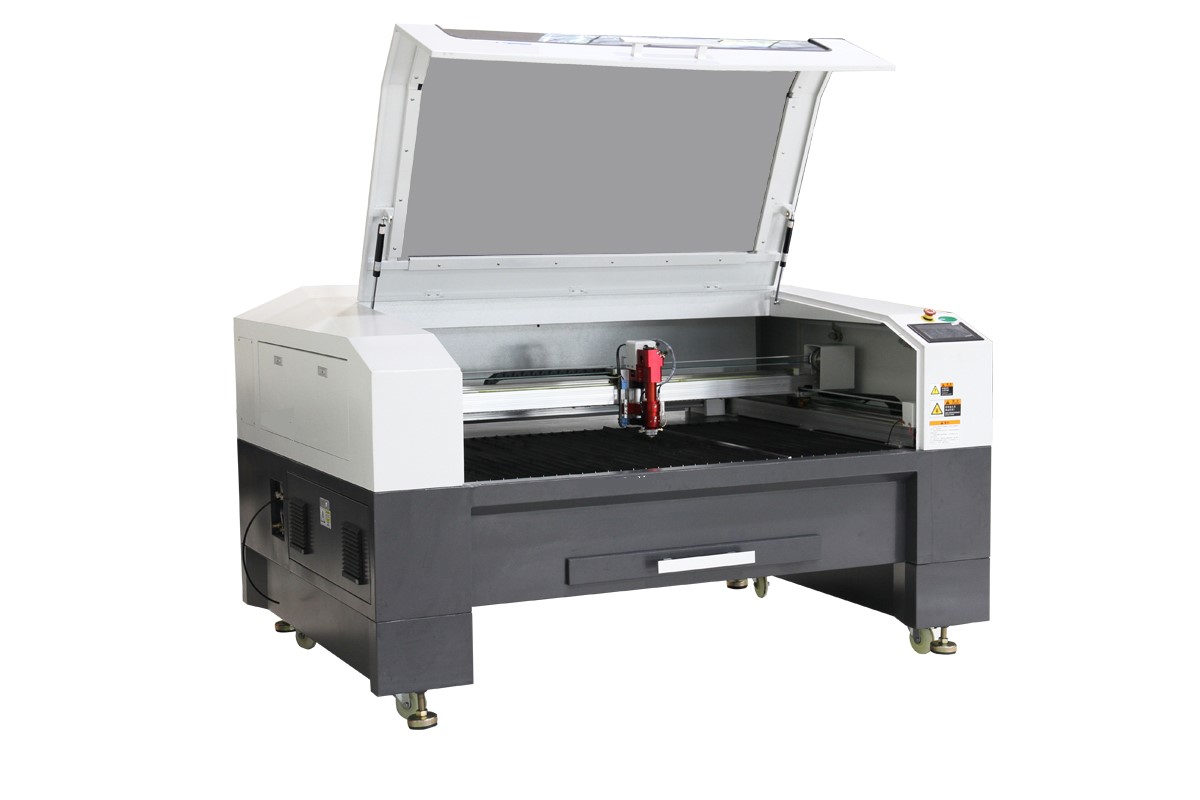

SP-13009SM is Perfect for medium to large sized business. Packed with technology and power, the SP-13009SM can cut and engrave at high speeds and accuracy. One of our most powerful machines with a large working area ideal for large scale production runs.This machine is built to last with precision machined components and premium
The SP-13009SM is not only capable of performing standard CO2 laser tasks, it is also capable of processing sheet metals using the state of the art oxygen assisted laser cutting
technology. Spark laser metal cutting laser machine will allow your business to produce precision metal parts without requiring expensive consumables, complicated setup procedures and the capability of simultaneous laser metal engraving.
Spark laser machines use a simple user friendly software that support all your familiar CAD programs. Supporting a wide range of Vector files and Raster files. The software is capable of processing images and drawings for engraving or cutting.
The software allows you to communicate with the laser cutter by controlling aspects like speed, power and position of the machine. It also features a live preview function that simulates the machine current state on the display so you can always be aware of the position of the laser head in reference to the machines zero point.
There are many useful features embedded within the software that make it unique and user friendly, like the preview function that estimates time, distance and even active laser light time of every design!
You are more than welcome to request a demo version of the software to test.
|Working Area||1300 mm x 900 mm|
|Laser Power||150W - 260W|
|Cooling Type||Water Cooling|
|Max Speed||300 mm/sec|
|Compatible Formats||RLD .DXF .PLT .JPEG .TIFF....|
|Drive System||High-precision 3-phase Stepper Motor|
|Working Environment||Temperature:0-45C,Humidity 5-95%|
|Aplicable Materials||Wood, Glass, Plastic, Garments, Paper, Leather, Metals, Stone|
|Compatible Software||CORELDRAW,PHOTOSHOP, AUTOCAD,SOLIDWORKS,etc.|
|Power Requirements||Single Phase 110V / 220V 10A/5A|
|Gross Power||1300 W|
Full Auto Oxygen assisted laser head
The SPM-13009 is equipped with the state of the art oxygen assist laser head. The motorized laser head will automatically adjust and correct its focal distance relative to the material being processed while supplying the correct pressure
and volume of oxygen or air during operation. Additionally it features safety mechanism to prevent excessive pressure and heat build up.
Lastly, it also serves as a automated mechanism to
adjust material focal offset for non metals.
LASER HEAD AND LINEAR BEARINGS
The Spark laser head is CNC milled out of a solid peace of aluminum tailor made for our machines. The unit is built with high quality linear square bearing system to minimize vibrations and increase load handling while the laser head is moving in order to achieve higher cutting and engraving speeds.
MACHINED ALUMINUM FRAME
The combination of machined parts and premium steel guide rails give the machine the ability to move smoothly with incredible precision. Equipped with proximity sensors and state of the art mechanisms to give the best precision, speed and reliability possible.
Over Heating Protection & Safety Sensors:
Every Spark laser machine comes with built in heat sensors and water circulation sensors in order to reduce the risk of accidents and machine failures. Additionally our machines come with contact sensors that stop the machine from firing the laser if the machine is left with the door open. Preventing eye injuries and fire hazards.
The auto focusing mechanism automates the procedure of focusing the distance between the material and the laser nozzle. This feature not only expedites the process of loading the machine, it also always keep the material in use, in perfect distance for optimal cutting or engraving.
With the spark auto focus system you can engrave or cut odd shaped objects by changing the focusing height of every process using the LaserWorks software. Continous focus is a simple step with SP-13009SM for metal handling, allowing for precise gap control.
LCD Display & Control
The integrated full colour LCD display and controls that comes with Spark laser cutters allows for easy manipulation of the machine for manual control over movement in X,Y and Z directions, focusing, beam pulsing, adjustments, pause, file storage and much more. Additionally the LCD allows for real time presentation of where the laser head is throughout the operation.
Every Spark machine is equipped with the highest standard laser bulbs available in the market. Our laser tubes have been vigorously tested and documented to make sure they can deliver a continuous and powerful laser beam for the maximum amount of time possible.
In order to protect the machine from accidental shock damage, every stepper motor is equipped with a slip clutch mechanism that protects the motors from experiencing a sudden shock that could damage their functionality.
LIGHT WEIGHT AND ADJUSTABLE
The anodized aluminum mirror brackets allow the machine to move with minimal resistance which means faster speeds and better precision. Additionally the mirrors are fully adjustable and replaceable for easy maintenance and cleaning.
WARRANTY & SERVICES
All Spark laser machines come with 3 months of SparkWarranty and 1 year manufacturer warranty. SparkWarranty covers every aspect of the machines, we guarantee your machine being in peak condition for you to use. Manufacturer warranty is also processed through spark and additional extended SparkWarranty is available.
Our machines come with everything required accessory to get our customers started and working, that includes training and initial calibration by the Spark team. When you buy a machine from Spark, you join the Spark family, and we will always make sure you are happy with your purchase.
INDUSTRIAL WATER CHILLER
Industrial water cooler with built-in compressor, temperature sensors and a smart control board that optimally manages the temperature of the Laser tube.
AIR ASSIST PUMP
The air assist pump is an integral part of generating clean cuts and smooth engravings. The continuous air flow directed to the tip of the laser cutter nozzle reduces flames and heat concentration.
Powerful 1/HP fan that extracts the fumes from inside the machine.
ACCESSORIES & MODIFICATIONS
Honeycomb table is useful for cutting small components with very little back burn from the reflection of the beam. The unique design of the table allows most of the laser light to pass without reflecting and scarring the back of the material.
Motorized work table
Optional Motorized work table for additional material handling versatility
