Maglev motion meets the laser.
We integrate Planar Motor's magnetically levitated XBots into custom machines, with laser processing, robotics and vision at every station.
Run a maglev laser cell.
A robot arm loads each XBot, the laser processes the part, vision checks it, and a second arm unloads it. Add movers or speed it up and watch the flow rebalance.

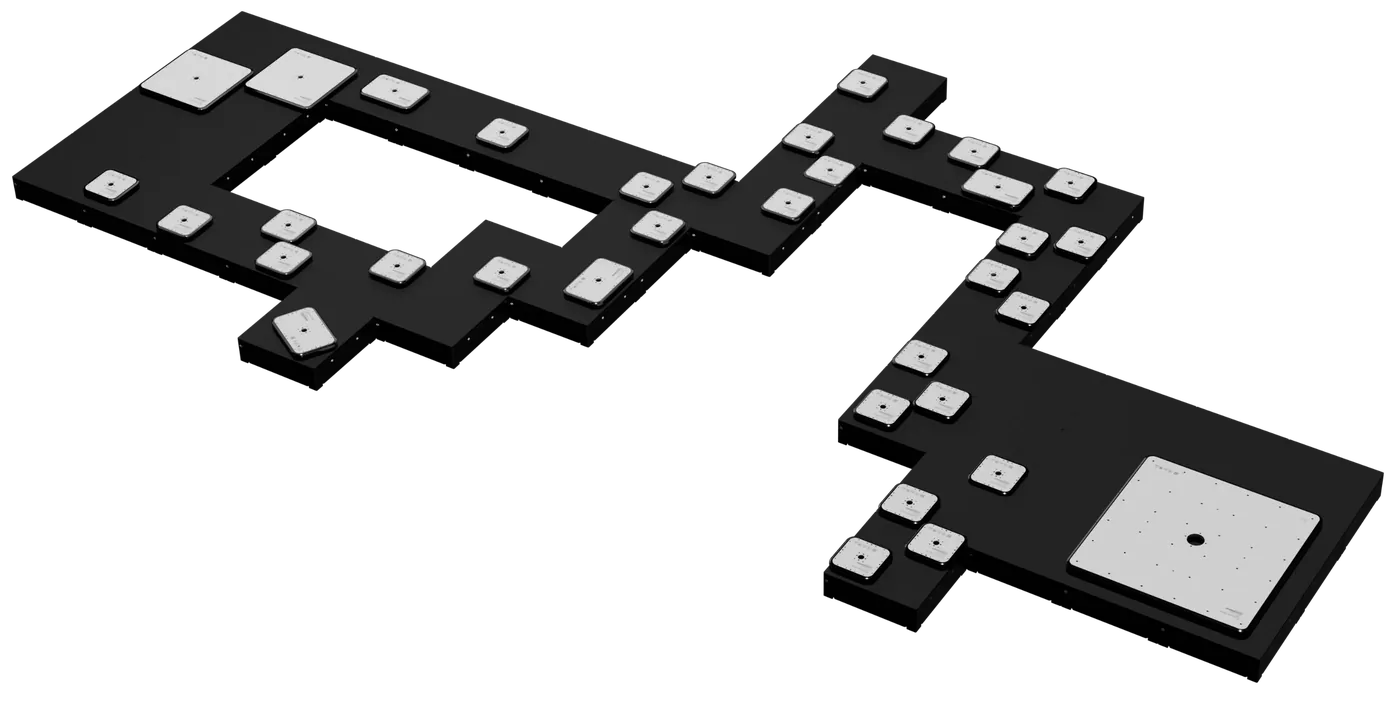

Image courtesy of Planar Motor Inc.A laser needs a part in the right place, every time.
XBots position each part in six degrees of freedom while they move, so the laser, camera or robot sees it exactly where it expects. No belts to stretch, no fixtures to swap, nothing touching the part.
- Precise positioning under the laser head, then on to the next station
- Tilt, rotate and lift parts for multi-face processing
- No lubrication and no particles, suited to medical and battery work
- Reroute the process in software when the product changes
The complete machine around the motion.
Planar Motor supplies the motion platform. We design and build everything else and hand you a working, certified cell.
- Laser marking, cutting, welding and micro-machining stations
- Robot load and unload, vision inspection and dispensing
- Custom nests and tooling machined in-house
- Controls, safety and integration with your line
Planar Motor systems in production.
Application footage from Planar Motor. Videos load when you press play.
Maglev production cellPlanar Motor application
Relay assemblyTE Connectivity · Planar Motor
Pharmaceutical handlingIMA Life Tile-X · Planar Motor

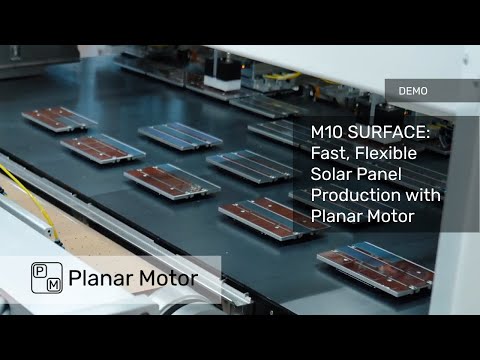

Solar panel assemblyM10 · Planar Motor
Thinking about maglev for your line?
Tell us what you're making. We'll set up a free 30-minute call with an engineer.
